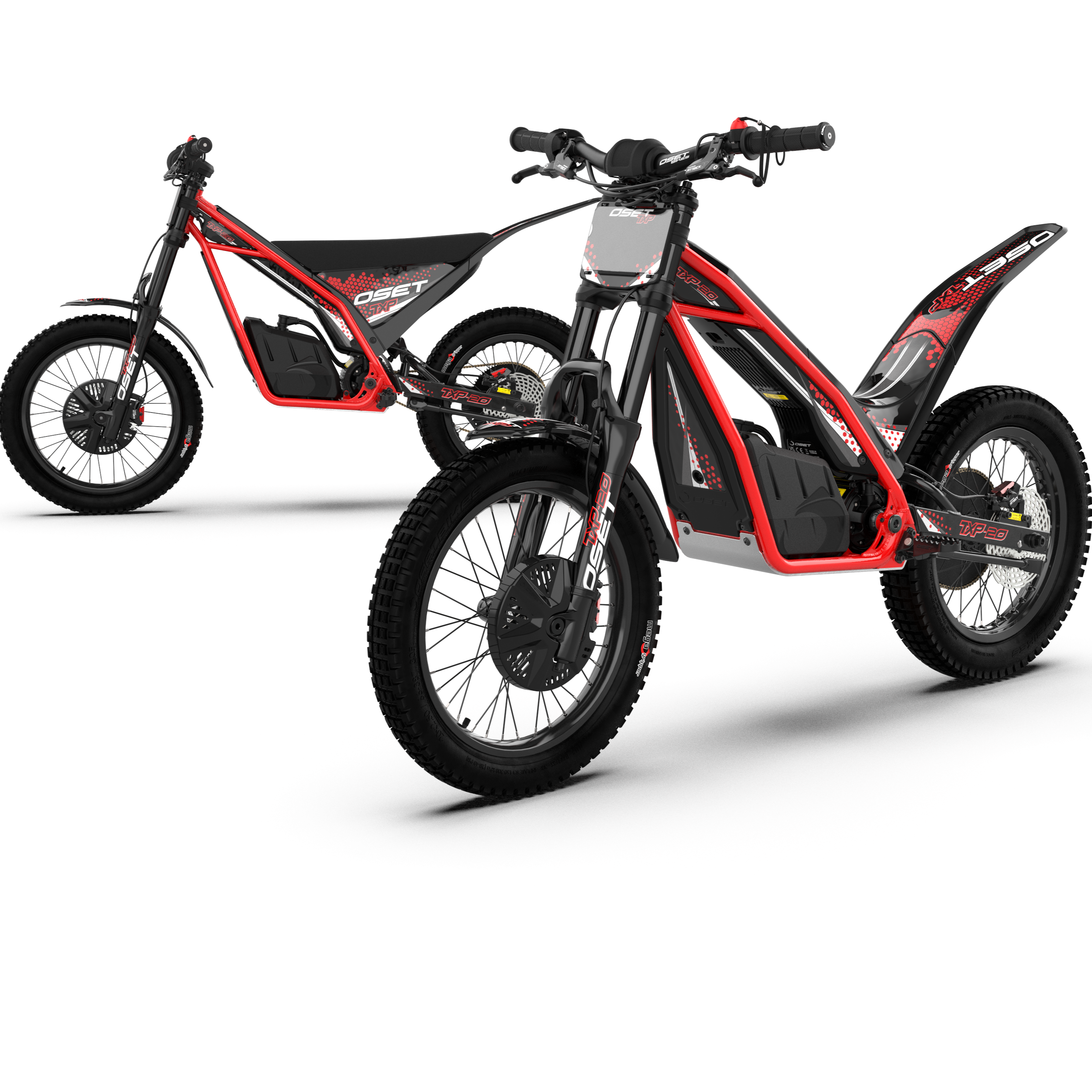

Oset TXP 20

OSET Bikes has launched its new TXP range, heralding the next generation in electric off-road motorcycles.  Representing Trials, Xplore and Play, the all-new TXP models offer a significant advance in battery and motor technology. The TXP bikes will also dramatically change existing off-road convention by including two seat options.  Convertible, trials and explore seat configurations will enable riders to develop skills across different riding environments, with just one bike.

The OSET TXP 20 bike delivers ultimate flexibility with controls that can be set to suit any level of ability and chassis setup options to meet the needs of an individual’s riding preference, while maintaining the highest standards of safety.

Key improvements include:

• Dual seat option offers a choice of bike configurations, extending the appeal and delivering a bike that suits a wider range of riding environments.
• Double the power and increased torque provided by the all-new brushless motor.
• Intuitive and ultra-smooth power delivery from bespoke motor controller and software strategy.
• Latest technology lithium battery in a sealed unit provides up to 4 hours runtime in normal use and rapid recharge times from only 90 minutes to 90%.
• All-new optimised chassis with fully adjustable air suspension enables rapid personalisation for a range of riding abilities and sizes.
• Fully adjustable with parent lock to control speed, power and response settings makes the perfect, safe beginner bike through to competition-capable machines.

The TXP-20 is aimed primarily at children aged seven to nine and offers an increase in battery capacity over its former model.  New and improved magnetic lanyard, combined with an impact rubber chin protector and new, ball-ended brake levers ensure this bike is competition ready out of the box.  A bike that sits happily in the boot of the car, gives parents the opportunity to transform it from a competition winning trials bike to a seated bike in minutes.

The drive system is more powerful and smoother.  Featuring an all-new, brushless drive system, the bike delivers twice as much power over the championship winning machine it replaces. Lithium battery capacity has also increased and completes a much more efficient system.  Improved geometry and fully adjustable air suspension (front and rear) delivers a better all-round feel and all-new OSET tyres help deliver more essential grip when competing.

A new keypad control centre, which includes a parental lock function, offers easy, push-button adjustability of speed, power and throttle response limits, putting safety of young riders at the heart of the bike’s technology. At the lowest settings, the bike will move at walking pace, to safeguard novice riders, stepping on the bikes for the first time to ensure they feel in full control, as they develop new riding skills.

For more experienced riders, with the limits dialled up, the bikes transform into high-power, competition winning machines, all in the setting of a few dials.

Features of the TXP 20:

• FRAME: Tubular steel, powder-coated.  Removable footpeg brackets and alloy sump plate.

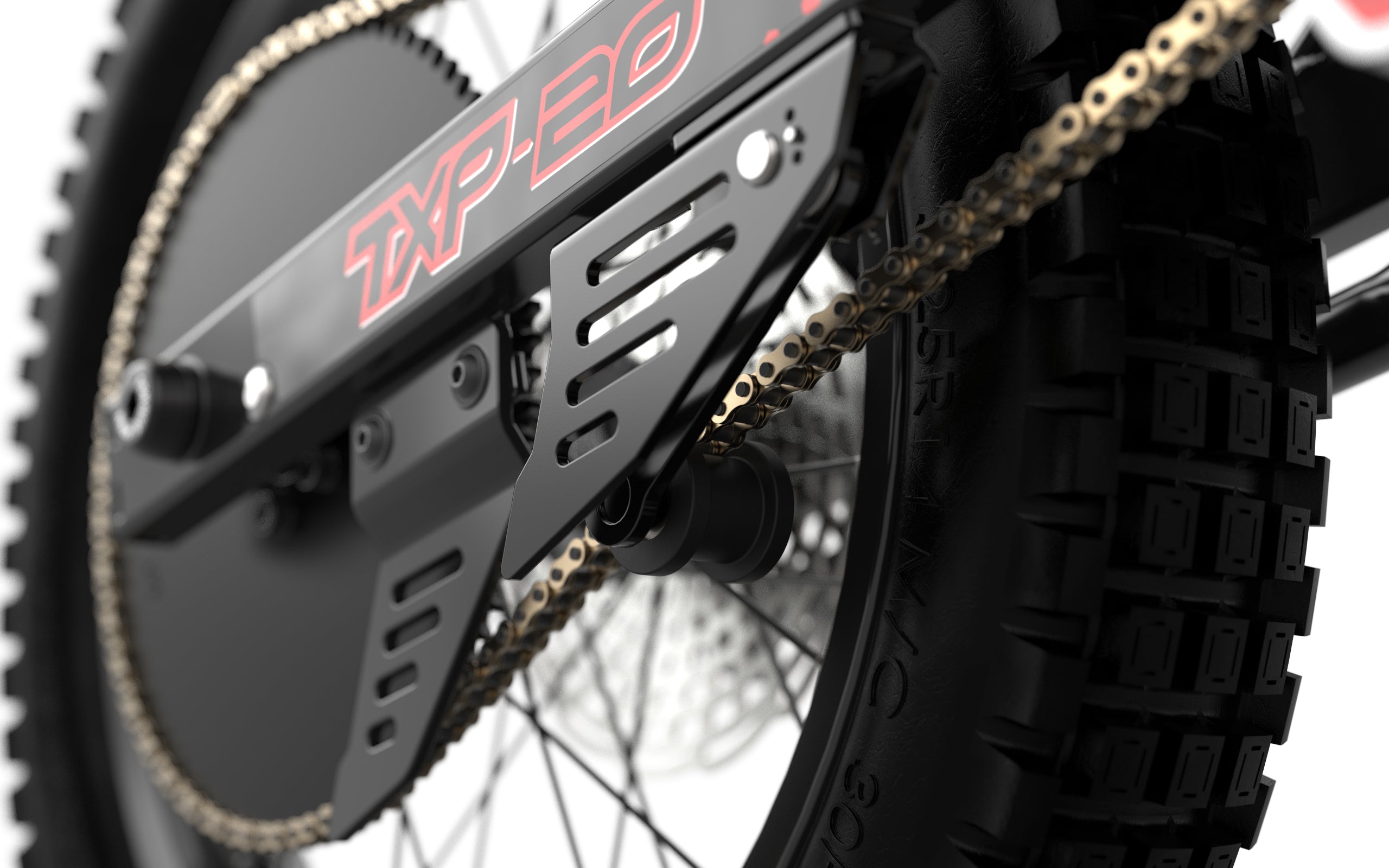

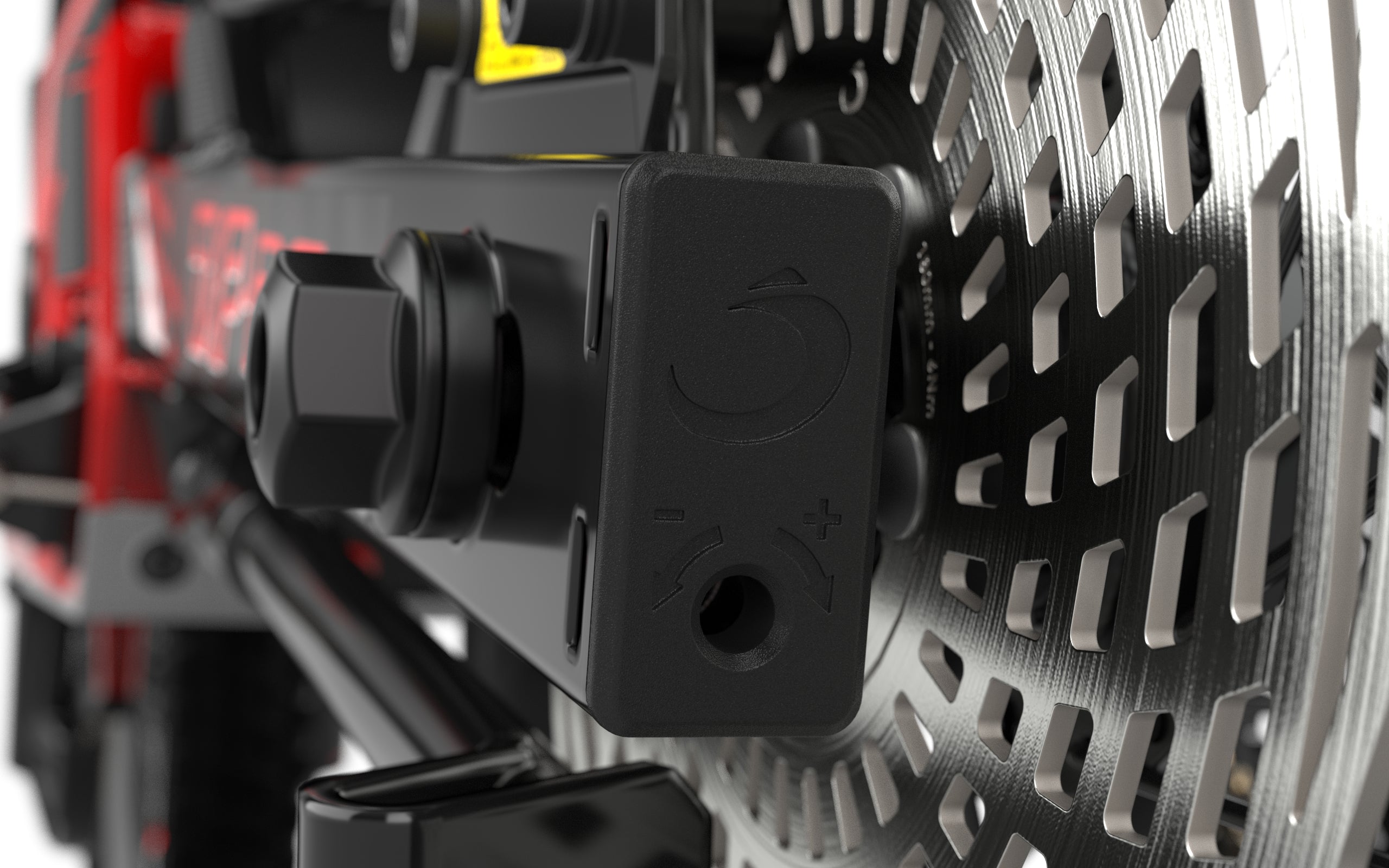

• SWINGARM: Steel, with integrated chain tensioners and chain guide.

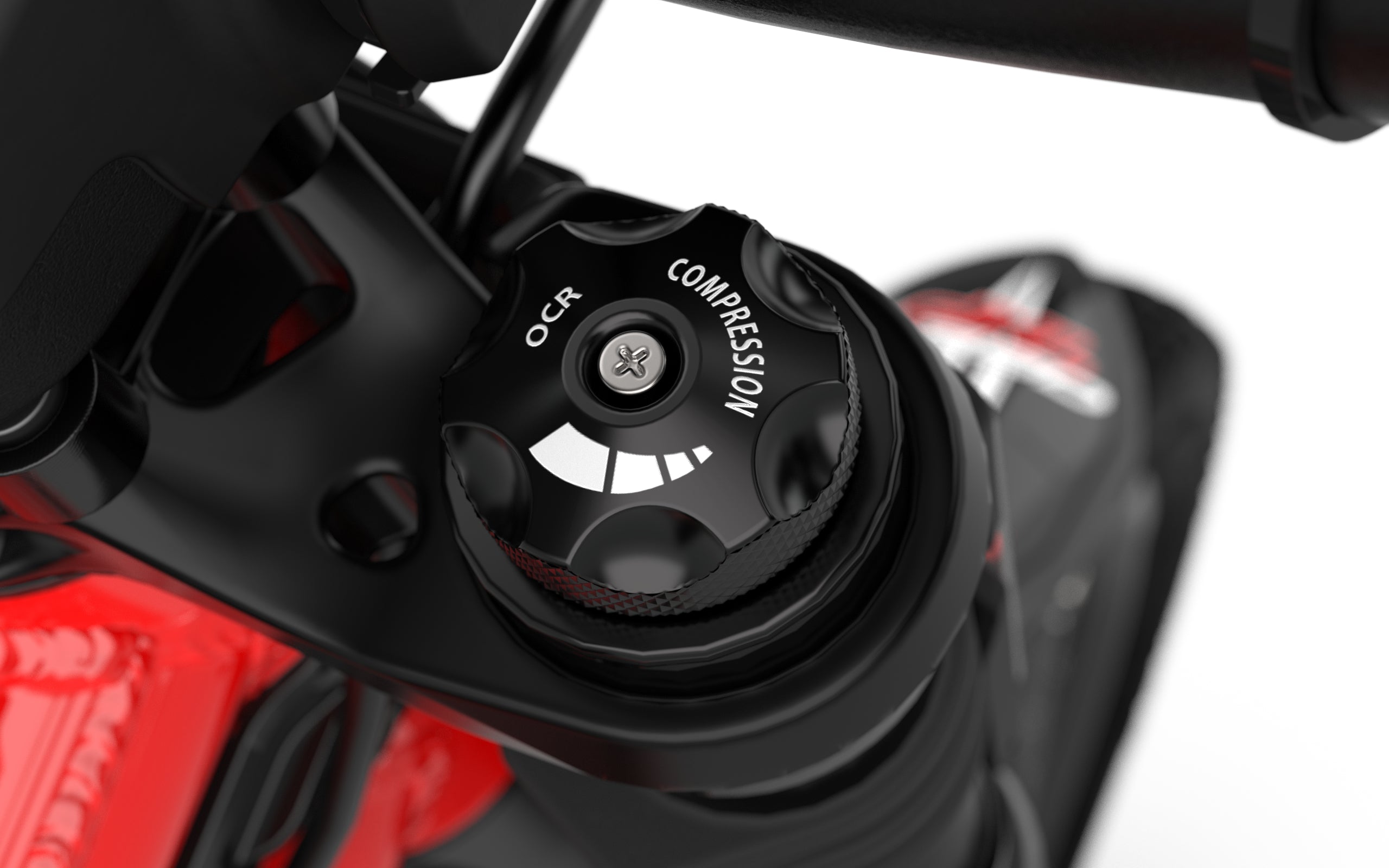

• FRONT SUSPENSION: Triple crown air forks with 125mm travel. Rebound and volume adjustment.
• REAR SUSPENSION: Air shock with 125mm travel. Rebound and volume adjustment.
• RIMS: Front: BC 20x1.60, 36h. Rear MC 14x1.60, 36h
• HUBS: Front: 110x20mm Alu, 36h. Rear 152x12mm Alu, 36h.
• TYRES: OSET Mega Gripper, Front: 20x2.50. Rear 14x3.25. Trials pattern.
• BIKE WEIGHT: Trials 39.4 kg -  Xplore 41kg

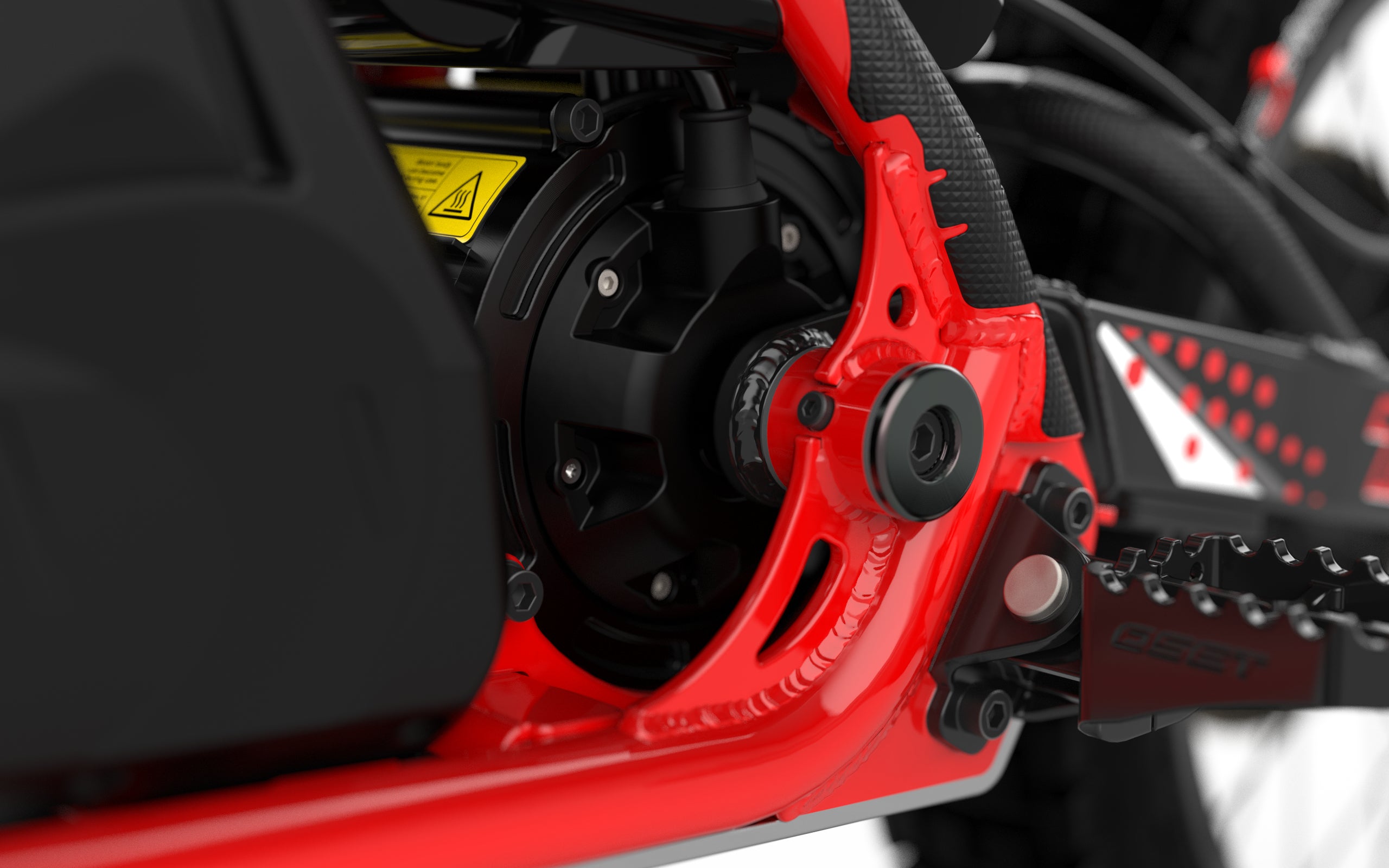

• MOTOR: 1400w 50.4v OSET BLDC with position encoder
• WHEEL BASE: 1085mm
• GROUND CLEARANCE: 255mm
• AGE RANGE: 7 - 10
• SEAT HEIGHT: Trials 545mm - Xplore 700mm
• RIDER WEIGHT LIMIT: 60KG
• CHARGER: 10 amp. Sensing/balancing
• BATTERIES: 50.4v 20ah lithium.  Sealed with LED status indicator
• BATTERY RUN TIME: Up to 4 hours (Rider weight and terrain dependant)
• CONTROLLER SETTINGS 4 x Speed, 4 x Power, 4 x Response
• CONTROLLER: 1400w brushless controller with IP66 connectors
• HANDLEBAR: 640mm width, 38mm rise, 31.8mm diameter, 7075 alloy.
• HANDLEBAR HEIGHT: 930MM
• BRAKES: Two piston hydraulic disc.  180mm rotors.

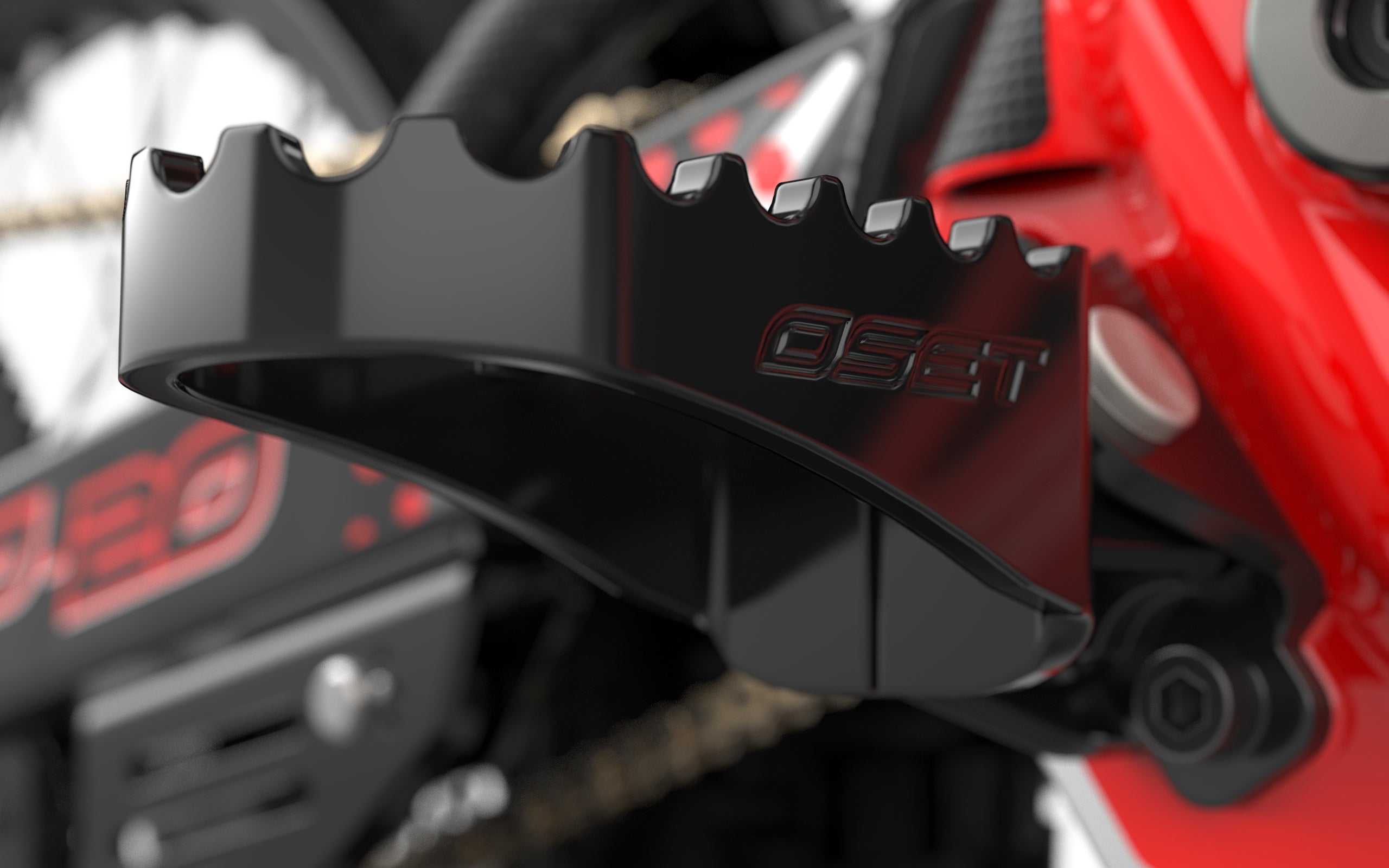

• FOOTPEGS: OSET factory steel with replaceable hangers.
• BRAKE LEVER: New, competition-ready rounded ball-end
• KILL SWITCH: OSET magnetic kill switch with lanyard.
• THROTTLE: Dual sensing.
• PADDED CHIN GUARD: Improved rubber

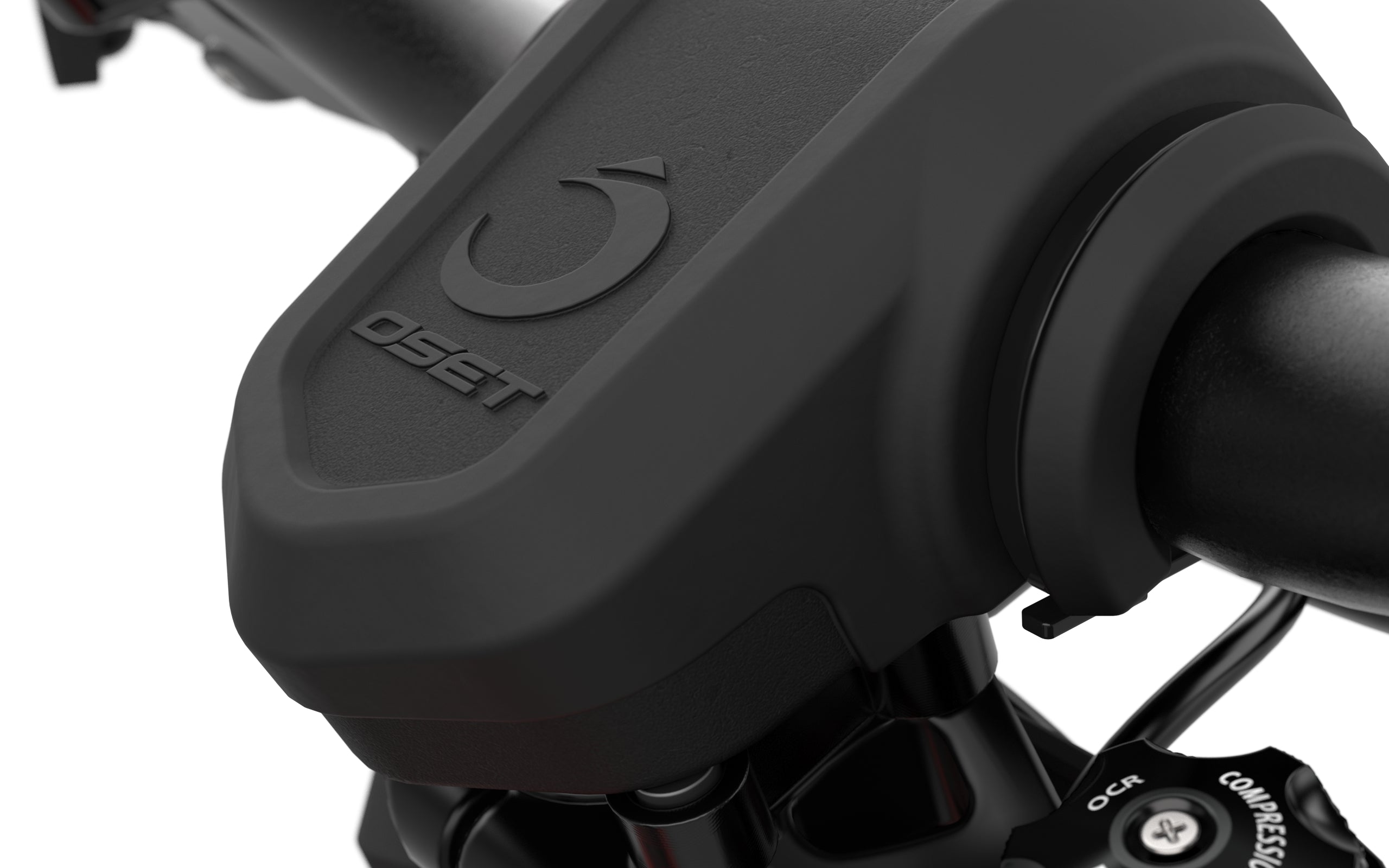

• ADJUSTEMENT: Integrated keypad, with speed, power and throttle response adjustment.
• MAXIMUM SPEED: 20mph (Rider weight and terrain dependant)
